HyperArray High Density IP Audio Streamer
HyperArray, the IP audio streamer for large scale E1/T1 PRI, analog/radio and digital PBX recording systems.
Rugged design, redundant hot-swap power supplies and hot-swap modules for unmatched reliability.
E1 and T1 PRI models have B-Channel DigitalVox triggering and D-channel signalling support for Call Setup, Connect, Clear, DDI number and CLI number decoding. Support for all major ISDN variants, QSIG, DASS-2 and DPNSS.
Generic IP stream format (the OptiLogix HyperStream open format) with a Dual-Stream option available for simultaneous IP audio streaming to two different recording servers.
Perfectly suited for Virtual Server environments.
Available Hot-Swap Modules:

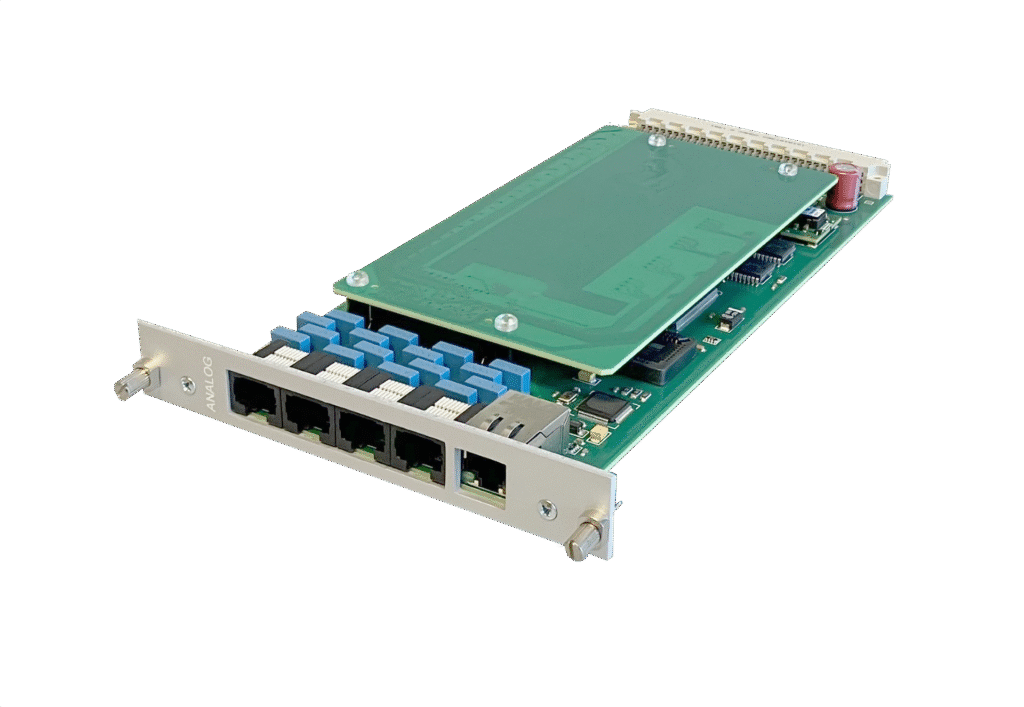

• Analog: 16 channels

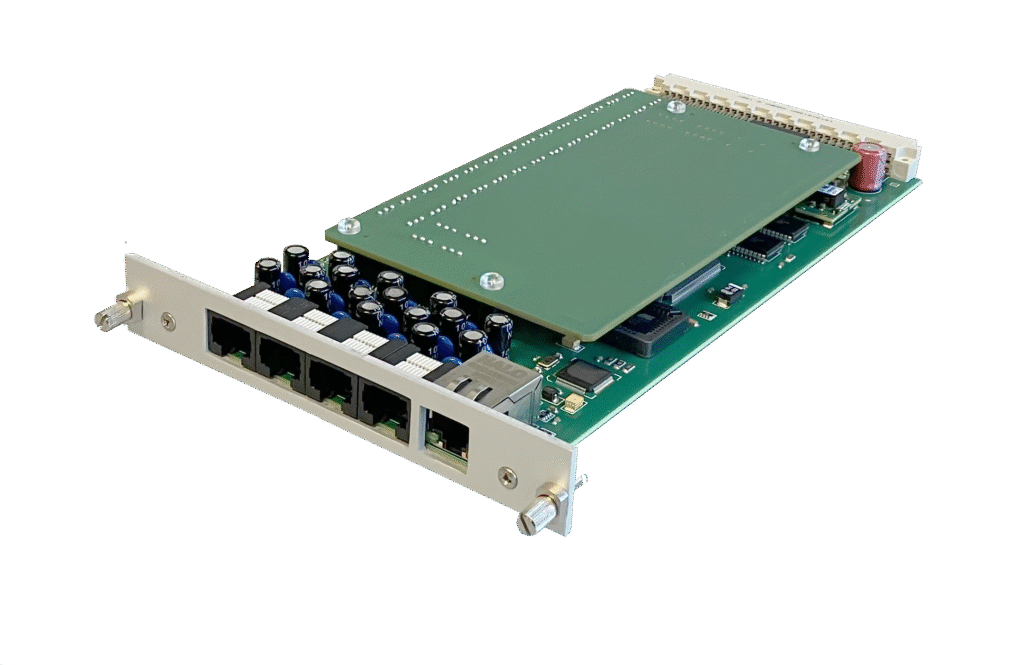

• Digital PBX: 16 channels

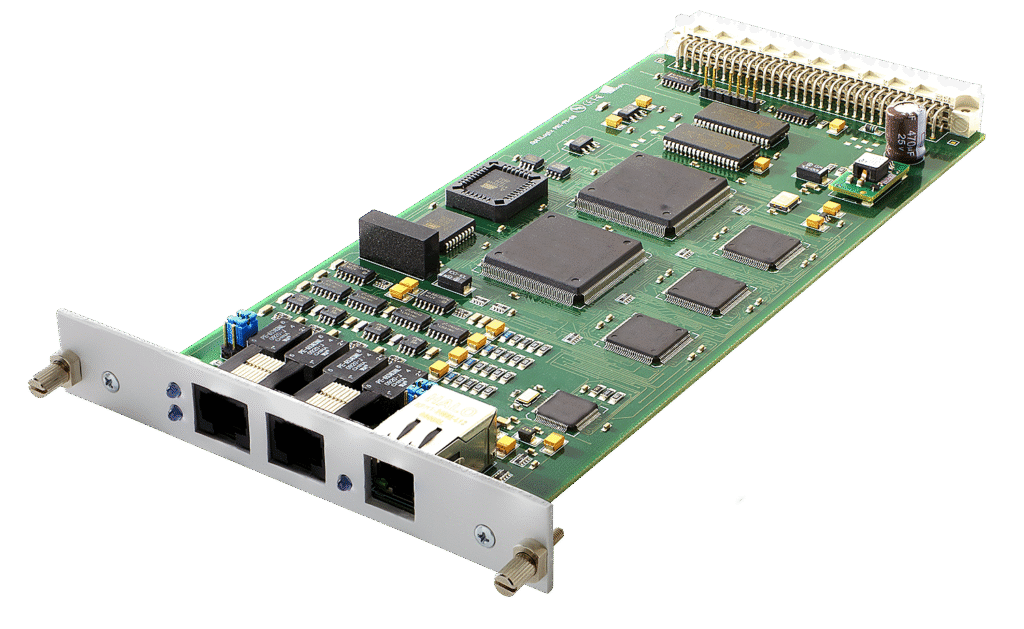

• Dual E1-PRI: 60 channels
• Dual T1-PRI: 46 channels
Available 19″ Rack Housings
(including Dual Hot-Swap Power Supplies):

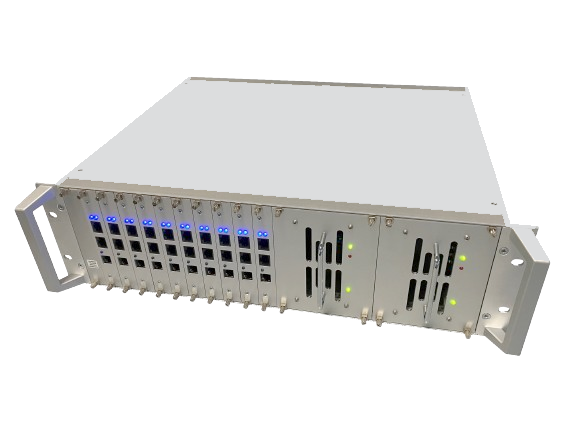

• Standard: 10 hot-swap module slots
• Extended: 15 hot-swap module slots
Technical specifications
Mechanical characteristics:
19″ housing (desktop use or rack mount)
Operating temperature: 0 ºC to +60 ºC
Humidity: 5% to 80% non-condensing
Maximum power requirements:
80-120Watts @ 110Vac or 230Vac
Operating systems supported:
Linux and Windows Operating Systems (OS agnostic)
Modules per standard rack:
Mix of 10 modules (up to 600 channels)
Modules per extended rack:
Mix of 15 modules (up to 900 channels)
Safety, emissions, immunity:
NEN-EN 62368-1, NEN-EN 55032 / NEN-EN-61000-3-2, NEN-EN 55035
Compliance: CE, FCC and RoHS 3
MTBF: 600.000 hours
Warranty: 2 years
Interface Specifications
Interfacing method: non-intrusive passive tap
Audio Stream encoding: 64kbit/s A-law (G.711)
Primary Rate interface: E1 or T1
AC impedance: 1100 Ω
Maximum tap length: 10 m / 100 m (terminated)
Signalling: Digital B-channel Vox triggering and Full D-channel on PRI circuits
Basic Rate interface: 4 wire So bus
AC impedance: Line Matched
Maximum tap length: 500 m
Signalling: Full D-channel
Digital PBX handset interface: 2 wire bus
Interfaces: All major PBX supported
Signalling: Digital B-channel Vox triggering
AC impedance: Line Matched
Maximum tap length: Typical 500 m (dependent on PBX model and cable quality)
Analog handset / trunk interface: 2 wire voltage start or line level audio triggering (Vox)
DC/AC impedance: Infinite / 3000 Ω
Maximum tap length: 5000 m
Signalling: Ring detection, voltage detection, DTMF detection for dialled numbers, FSK Caller ID detection, voice activity detection
